TCK5240 hard rail tailstock CNC lathe

Product details

part	Machine type Projects	TCK5240
host want ginseng number	Bed top. Large upper rotation diameter	F460
	Large machining diameter	F400
	Knife holder. Large machining diameters	F260
	Large processing length	400
	Two. distance	420
host axis and card tray ginseng number	Spindle head type (optional chuck)	A2-6（8″）
	Spindle motor power	11KW
	Spindle. High rotational speed	3000rpm
	Spindle bore diameter	F61
	Bar diameter	F52
	X-axis limit travel	Radius 245
	Z-axis limit travel	420
	X, Z axis connection	Direct connection
knife tower	Dota	12T
tail seat division divide	Sleeve diameter	75
	Sleeve stroke	80
	Tailstock. Large strokes	300
	Tailstock sleeve taper	Mohs 4#
profile	Bed form and inclination Dimensions (length×width×height).	Integral/45o 215016001600
profile	weight	2700KG

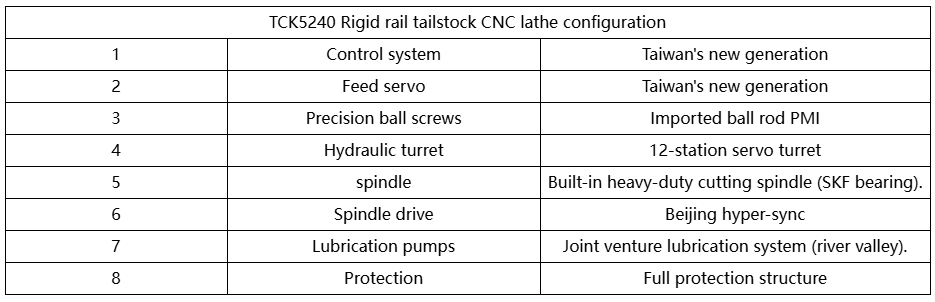

TCK5240 Rigid rail tailstock CNC lathe configuration
1	Control system	Taiwan's new generation
2	Feed servo	Taiwan's new generation
3	Precision ball screws	Imported ball rod PMI
4	Hydraulic turret	12-station servo turret
5	spindle	Built-in heavy-duty cutting spindle (SKF bearing).
6	Spindle drive	Beijing hyper-sync
7	Lubrication pumps	Joint venture lubrication system (river valley).
8	Protection	Full protection structure

1. The bed adopts a 45-degree integral casting structure, and adopts a hard rail and built-in spindle structure to increase the rigidity and service life of the machine tool.
2. The hydraulic system assembly is installed to realize the automatic clamping of the workpiece and the automatic function of the hydraulic tail top.
3. The support design is reasonable, the heat dissipation is good, and the heat balance between the upper and lower parts of the spindle makes the heat spread to the bed as little as possible, so as to achieve the most effective heat release of the spindle and reduce the thermal deformation.
Fourth, the machine tool uses a rear hydraulic turret design, which has good rigidity, easy chip removal, and implements the overall protection of the whole machine tool, so as to better effectively protect the components of the machine tool.
5. The spindle uses solid lubricant, and the screw rod and guide rail adopt liquid automatic lubrication, which can more effectively protect important components and prolong their service life.
6. This machine tool is suitable for heavy cutting and can replace imported hard rail machines.

Tips: Machine technology continues to improve, the company has the final interpretation of all technical parameters.
