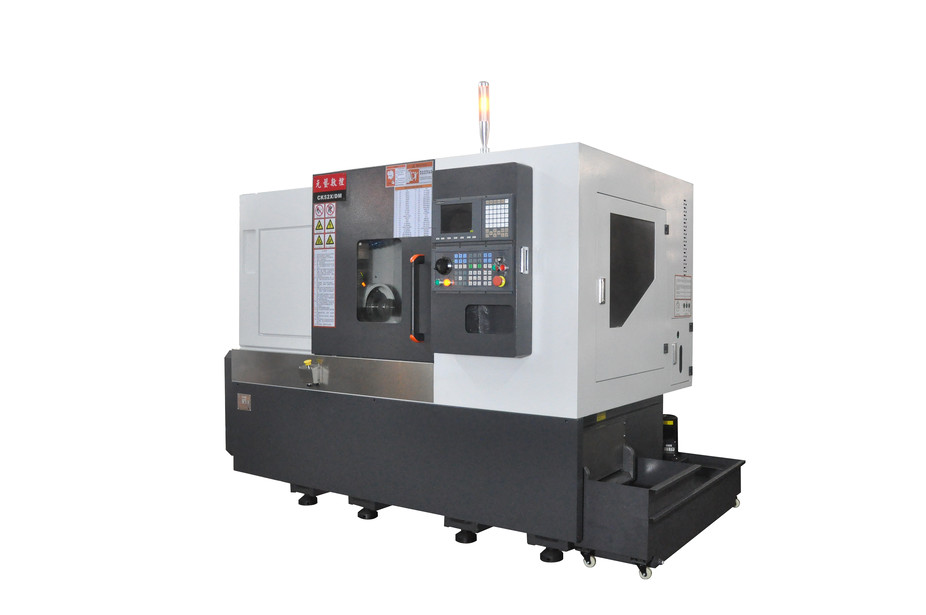

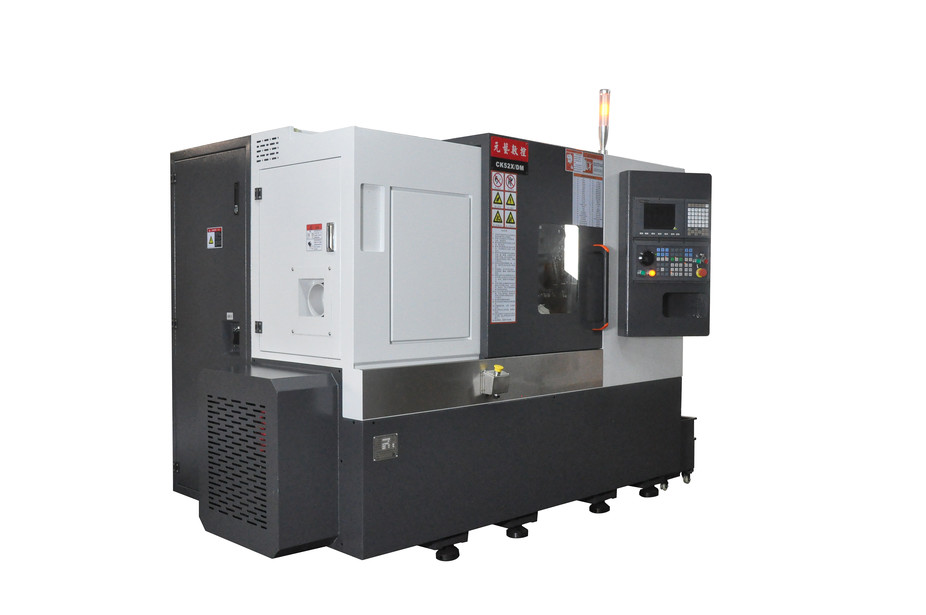

CK52X/DM turret inclined rail tailstock precision CNC lathe (with hydraulic thimble)

CK52X/DM Features: First, the bed body adopts 60 degree integral casting structure, and through series optimization, the spindle adopts roller bearing and roller guide rail, so that the machine tool can realize heavy cutting processing. Second, the hydraulic system assembly is installed to realize the automatic function of automatic workpiece clamping and hydraulic tail. Third, the support design is reasonable, the heat dissipation is good, the sleeve main shaft is installed on the center line of the main shaft, and the heat is balanced between the upper part and the lower part of the main shaft, so that the heat is spread to the bed as little as possible, and the most effective heat release of the main shaft is achieved, and the thermal deformation is reduced. Fourth, the machine tool uses the design of the hydraulic turret, the rigidity is good, the chip removal is easy, and the overall protection of the whole machine is implemented to better protect the various parts of the machine tool. 5. The main shaft uses solid lubricant. The screw and guide rail adopt liquid automatic lubrication method to protect important parts more effectively and prolong their service life. Sixth, the machine tool is equipped with hydraulic tailstock ejector pin for processing all kinds of disc materials and long shaft parts.

Product details

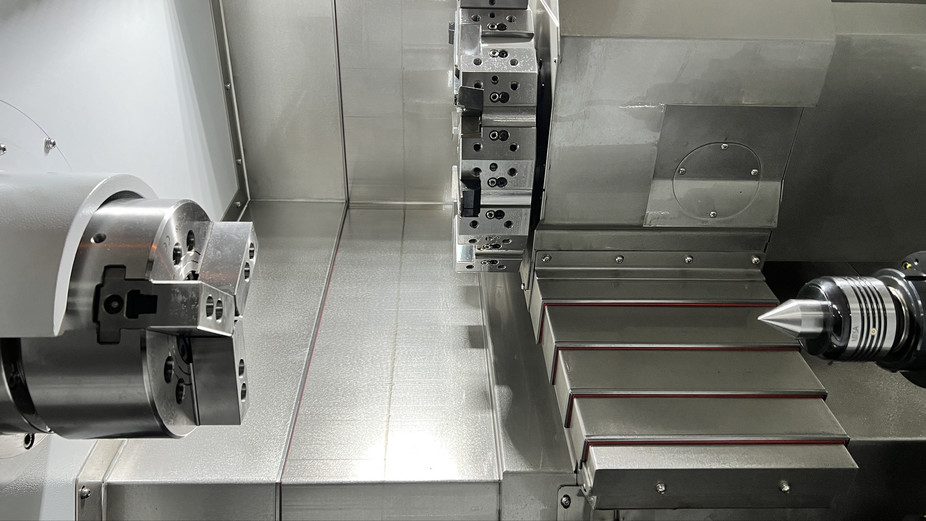

CK52XDM 刀塔斜轨精密数控车床（带液压顶针）1.jpg

CK52XDM 刀塔斜轨精密数控车床（带液压顶针）.jpg

CK52XDM 刀塔斜轨精密数控车床（带液压顶针）2.jpg

The details parameter .jpg

Lathe specifications
CK52X/DM
1	Machine structure	Integral sloping bed
2	Knife form	10-station hydraulic turret
3	Number of knives	10 handfuls
4	Tool specifications	20mm
5	Spindle specifications	A2-6
6	Spindle structure	Sleeve type
7	Spindle bore diameter	￠62mm
8	Spindle motor power	9.5KW servo
9	Spindle. High rotational speed	3500rpm
10	The slide plate is high to the center of the spindle	90mm
11	Tailstock sleeve stroke	80mm
12	Workpiece clamping method	hydraulic pressure
13	Chuck specifications	8 inch hydraulic chuck
14	Large clamping diameter	￠200mm
15	Machine tool. Large slalom diameter	￠300mm
16	Large diameter of processed bar	￠52mm
17	Large processing length	500mm
18	X-axis travel	200mm
19	Z-axis travel	500mm
21	Rapid movement speed in the X and Z axes	24m/min
22	Repeatability accuracy	0.005mm
23	Machining accuracy	±0.006mm
24	Feed motor power	1.3KW servo
25	Hydraulic assembly motor power	1.5KW
26	Total power of the power supply	15KW
27	Feeding method	Oil bath type
28	Lubrication method	automatic
29	Exterior dimensions	260015001800mm(LWH)
30	Machine weight	2800KG

CK52X/DM
1	Control system	Taiwan's new generation
2	Feed servo	Japan Yaskawa Clothing
3	Precision ball screws	Taiwan Yintai and Taiwan Bank of Shanghai
4	Precision guide rails	Japan THK, Taiwan Shang
5	Hydraulic turret	Taiwan Liuxin
6	spindle	Taiwan Pusen, Taiwan ROYAL, DKDAKE
7	Spindle drive	Beijing hyper-sync

DetailsFeatures .jpg

1. The bed adopts a 60-degree integral casting structure, and through a series of optimization, the spindle adopts roller bearings and roller guide rails, so that the machine tool can achieve heavy cutting processing.

2. The hydraulic system assembly is installed to realize the automatic clamping of the workpiece and the automatic function of the hydraulic tail top.

3. The support design is reasonable, the heat dissipation is good, the sleeve spindle is installed on the center line of the spindle, and the upper and lower parts of the spindle are balanced in heat, so that the heat spreads to the bed as little as possible. Effective spindle heat release to reduce thermal distortion.

Fourth, the machine tool uses a rear hydraulic turret design, which has good rigidity, easy chip removal, and implements the overall protection of the whole machine tool, so as to better effectively protect the components of the machine tool.

5. The spindle uses solid lubricant, and the screw rod and guide rail adopt liquid automatic lubrication, which can more effectively protect important components and prolong their service life.

6. This machine tool is suitable for the processing of various coils and long shaft accessories with hydraulic tailstock ejector.
