CK46X/X precision ramp milling and milling CNC lathe

CK46X/X machine features: 1.the machine adopts 30° integral slant bed structure, the structure is novel, the side and end power shafts adopt precision grinding gears, which have the characteristics of strong rigidity, high speed and long service life, and cooperate with the row knife structure to realize the basic of turning and milling. Features. 2. the machine can perform side-drilling, tapping and milling three-axis linkage function. Third, the main shaft adopts the sleeve main shaft with the standard inner cone structure, the hydraulic chuck and the spring collet can be directly installed. Without the transition flange, the chuck can be quickly replaced. 4. The spindle adopts maintenance-free structure and uses precise high-speed angular contact bearings. The maximum speed can reach 6000 rpm, which can effectively perform high-speed cutting and improve the surface roughness of the workpiece. 5. The machine tool adopts imported precision high-speed silent screw rod and adopts double pre-tensioning fixed structure, which makes the machine tool rigidity effectively improved and eliminates the precision change caused by the cold and heat changes caused by the machine tool operation. 6.the guide rail adopts German linear guide rail, which has the advantages of good rigidity, high precision, long service life and easy maintenance. 7. The screw guide rail adopts liquid automatic lubrication method to effectively protect important parts and prolong their service life. 8.using Taiwan's new generation control system, and with Japan's Yaskawa ultra-precision servo (24-bit encoder), the machine processing accuracy and processing speed have been effectively improved. 9. This machine tool is suitable for the processing of precision parts such as aviation equipment, optoelectronics, automobile, sanitary ware and lighting.

Product details

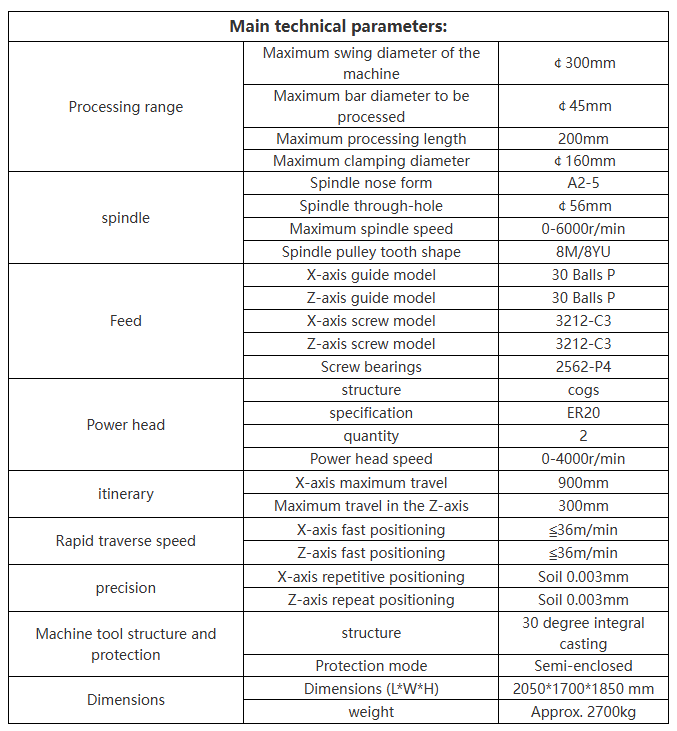

Lathe specifications

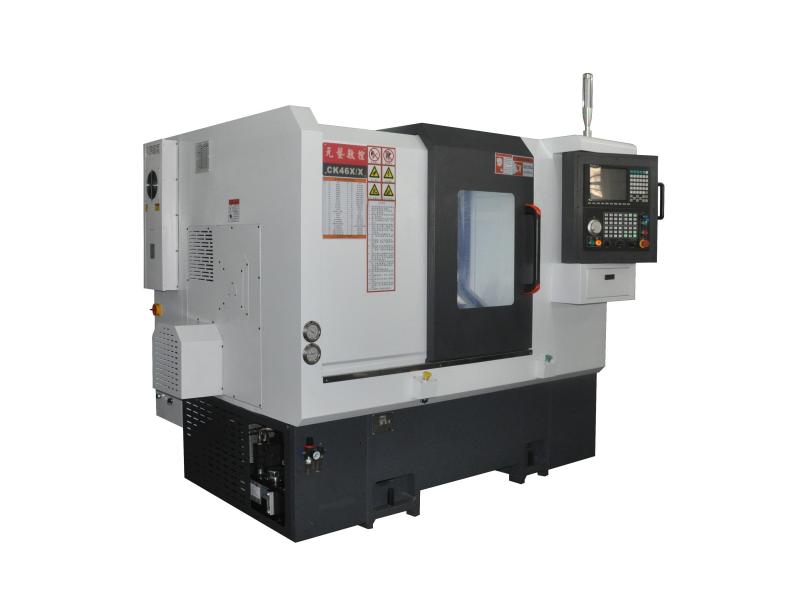

CK46X/X precision ramp milling and milling CNC lathe
1	Machine structure	Slant bed

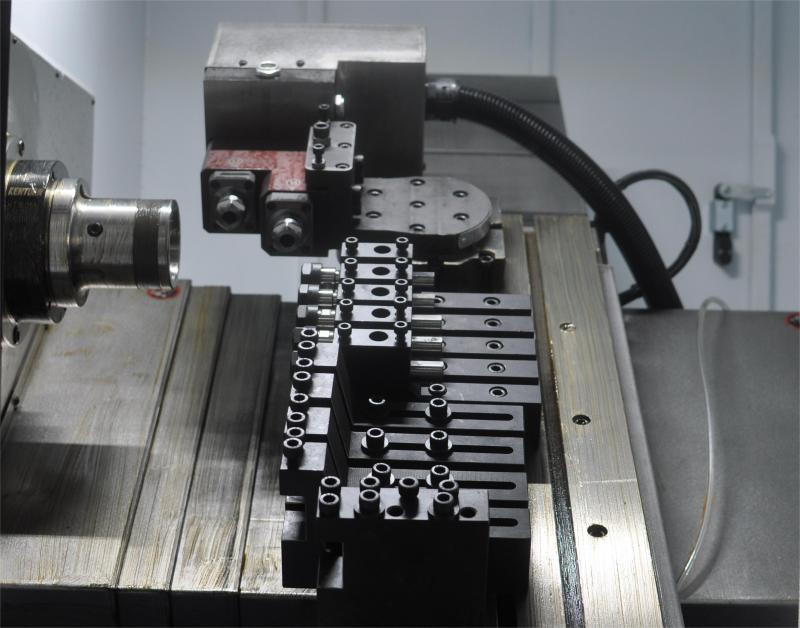

2	Tool form	Row of knives
3	Number of tools	6-8 (showing workpiece diameter)
4	Tool specification	16-20mm
5	Power head structure	gear drive
6	Power head specifications	ER20
7	Number of power heads	2
8	Power head speed	4000rpm
9	Spindle specification	A2-5
10	Spindle structure	Sleeve type
11	Spindle through hole diameter	￠56mm
12	Spindle motor power	5.5KWServo
13	Maximum spindle speed	6000rpm
14	Skateboard to the center of the spindle	50mm
15	Workpiece clamping method	Oil pressure
16	Chuck specification	6-inch hydraulic chuck
17	Maximum clamping diameter	￠160mm
18	Machine tool maximum turning diameter	￠300mm
19	Maximum processing bar diameter	￠45mm
20	Maximum processing length	200mm
21	X-axis travel	900mm
22	Z-axis travel	300mm
24	X, Z axis fast moving speed	36m/min
25	Repeatability	0.003mm
26	Precision	±0.005mm
27	Feed motor power	1.3W
28	Hydraulic assembly motor power	1.2KW
29	Total power of the power supply	10KW
30	Feeding method	Oil bath
31	Lubrication method	automatic
32	Physical dimension	205017001850mm(Length * width * height）
33	Machine weight	2700KG

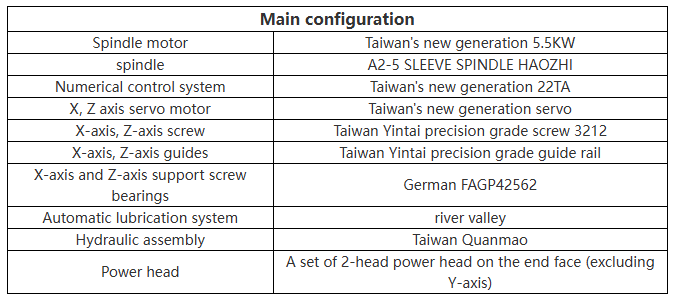

CK46X/X machine is standard
1	Control system	Taiwan's new generation
2	Feed servo	Japan's Yaskawa, Taiwan's new generation
3	Precision ball screws	Taiwan Yintai and Taiwan Bank of Shanghai
4	Precision guide rails	Taiwan Yintai and German Rexroth
5	spindle	Taiwan Pusen, Taiwan Luo Yi ROYAL, Haozhi DKDAKE
6	Spindle drive	Taiwan's new generation, Beijing's super synchronous servo

CK46X/X machine features:
1.the machine adopts 30° integral slant bed structure, the structure is novel, the side and end power shafts adopt precision grinding gears, which have the characteristics of strong rigidity, high speed and long service life, and cooperate with the row knife structure to realize the basic of turning and milling. Features.
2. the machine can perform side-drilling, tapping and milling three-axis linkage function.
Third, the main shaft adopts the sleeve main shaft with the standard inner cone structure, the hydraulic chuck and the spring collet can be directly installed. Without the transition flange, the chuck can be quickly replaced.
4. The spindle adopts maintenance-free structure and uses precise high-speed angular contact bearings. The maximum speed can reach 6000 rpm, which can effectively perform high-speed cutting and improve the surface roughness of the workpiece.
5. The machine tool adopts imported precision high-speed silent screw rod and adopts double pre-tensioning fixed structure, which makes the machine tool rigidity effectively improved and eliminates the precision change caused by the cold and heat changes caused by the machine tool operation.
6.the guide rail adopts German linear guide rail, which has the advantages of good rigidity, high precision, long service life and easy maintenance.
7. The screw guide rail adopts liquid automatic lubrication method to effectively protect important parts and prolong their service life.
8.using Taiwan's new generation control system, and with Japan's Yaskawa ultra-precision servo (24-bit encoder), the machine processing accuracy and processing speed have been effectively improved.
9. This machine tool is suitable for the processing of precision parts such as aviation equipment, optoelectronics, automobile, sanitary ware and lighting.
