CK52Z/DYA power turret turning milling composite precision CNC lathe
- Product details
|

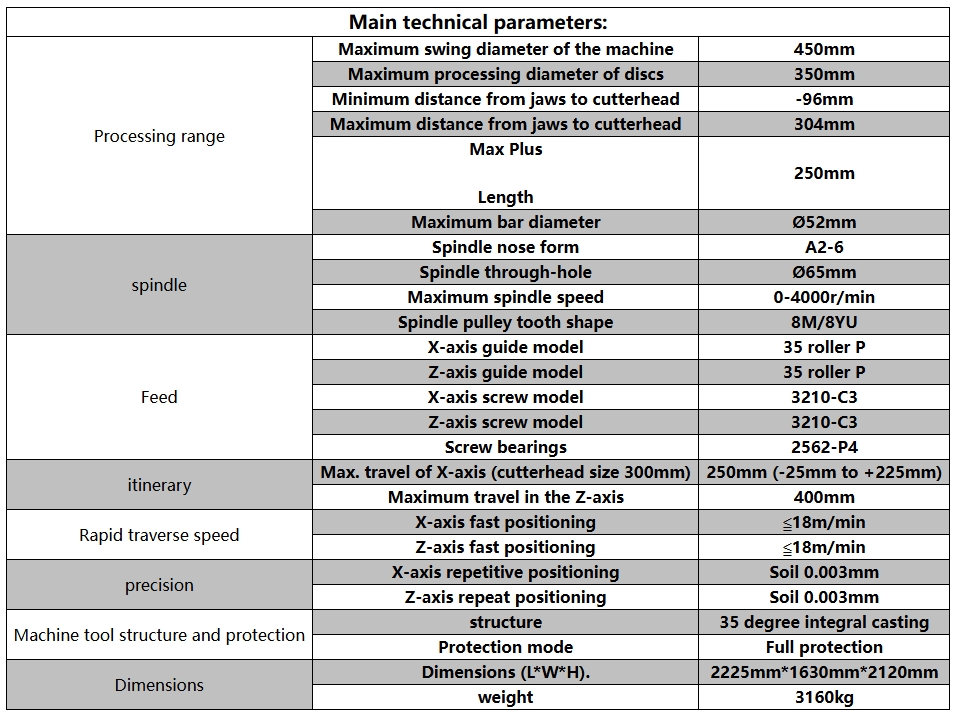

Main technical parameters: |
||
|
Processing range |
Maximum swing diameter of the machine |
450mm |
|
Maximum processing diameter of discs |
350mm |
|
|
Minimum distance from jaws to cutterhead |
-96mm |
|
|
Maximum distance from jaws to cutterhead |
304mm |
|
|
Max Plus
Length |
250mm |
|
|
Maximum bar diameter |
Ø52mm |
|
|
spindle |
Spindle nose form |
A2-6 |
|
Spindle through-hole |
Ø65mm |
|
|
Maximum spindle speed |
0-4000r/min |
|
|
Spindle pulley tooth shape |
8M/8YU |
|
|
Feed |
X-axis guide model |
35 roller P |
|
Z-axis guide model |
35 roller P |
|
|
X-axis screw model |
3210-C3 |
|
|
Z-axis screw model |
3210-C3 |
|
|
Screw bearings |
2562-P4 |
|
|
itinerary |
Max. travel of X-axis (cutterhead size 300mm) |
250mm (-25mm to +225mm) |
|
Maximum travel in the Z-axis |
400mm |
|
|
Rapid traverse speed |
X-axis fast positioning |
≦18m/min |
|
Z-axis fast positioning |
≦18m/min |
|
|
precision |
X-axis repetitive positioning |
Soil 0.003mm |
|
Z-axis repeat positioning |
Soil 0.003mm |
|
|
Machine tool structure and protection |
structure |
35 degree integral casting |
|
Protection mode |
Full protection |
|
|
Dimensions |
Dimensions (L*W*H). |
2225mm*1630mm*2120mm |
|
weight |
3160kg |
|
|

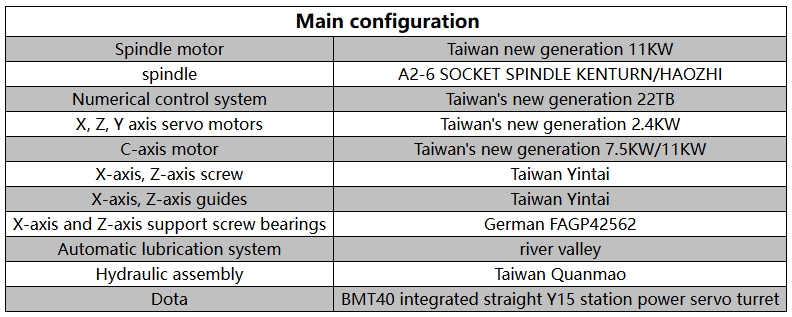

Main configuration |
||||||
|
Spindle motor |
Taiwan new generation 11KW |
|||||
|
spindle |
A2-6 SOCKET SPINDLE KENTURN/HAOZHI |
|||||
|
Numerical control system |
Taiwan's new generation 22TB |
|||||
|
X, Z, Y axis servo motors |
Taiwan's new generation 2.4KW |
|||||
|
C-axis motor |
Taiwan's new generation 7.5KW/11KW |
|||||
|
X-axis, Z-axis screw |
Taiwan Yintai |
|||||
|
X-axis, Z-axis guides |
Taiwan Yintai |
|||||
|
X-axis and Z-axis support screw bearings |
German FAGP42562 |
|||||
|
Automatic lubrication system |
river valley |
|||||
|
Hydraulic assembly |
Taiwan Quanmao |
|||||
|
Dota |
BMT40 integrated straight Y15 station power servo turret |
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
Tips: Machine technology continues to improve, the company has the final interpretation of all technical parameters.
