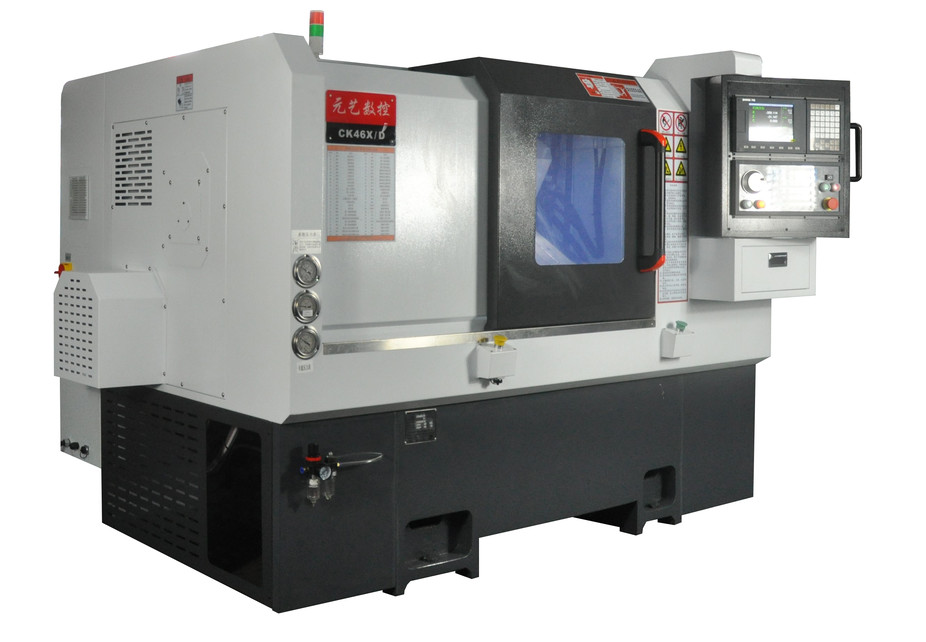

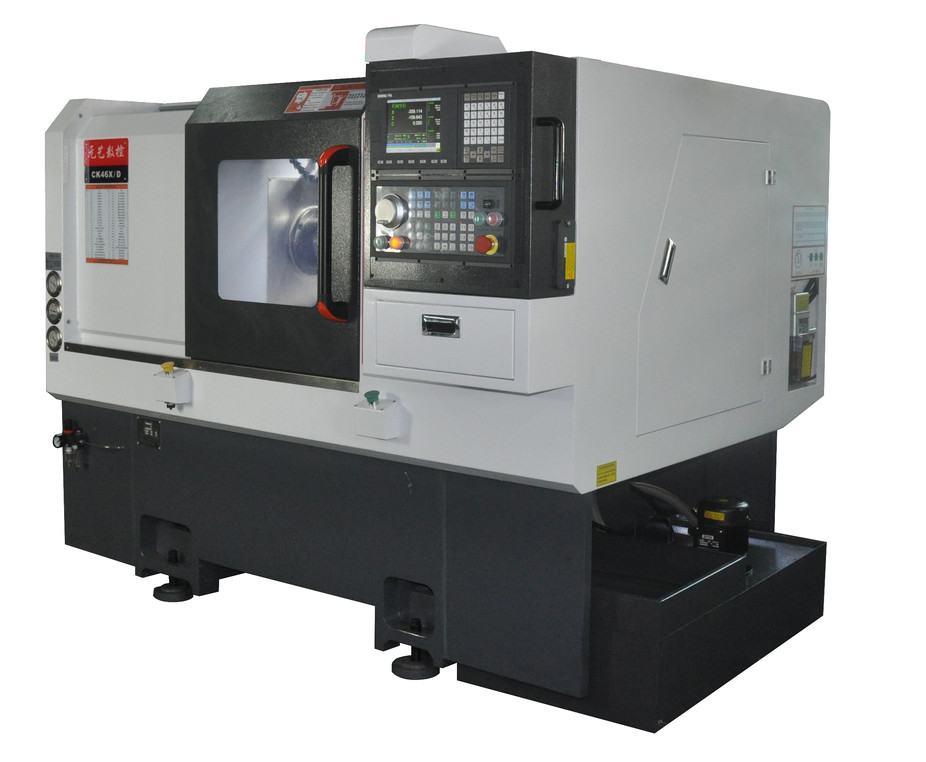

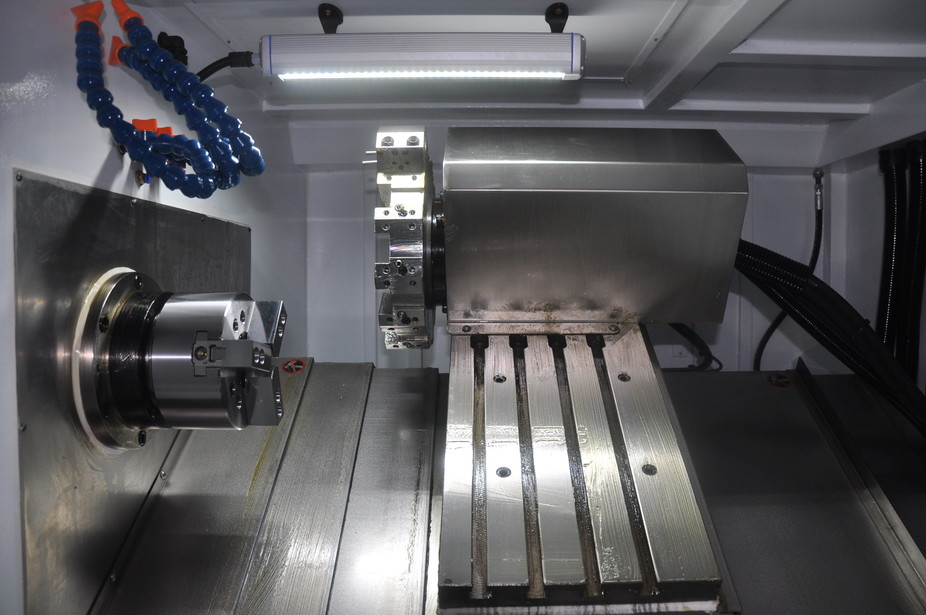

CK46X/D turret ramp precision CNC lathe (without tail)

CK46X/D Features: First, the bed body adopts 30° integral structure. The main shaft adopts the sleeve main shaft with standard inner cone structure, hydraulic chuck and spring collet, which can be directly installed. Without the transition flange, the chuck can be quickly replaced. . Second, the machine tool uses eight-station hydraulic turret design, good rigidity, easy chip removal, easy to operate, especially suitable for the processing of disc parts. Third, the main shaft adopts maintenance-free sleeve design. The sleeve main shaft is installed on the center line of the main shaft. The upper and lower parts of the main shaft are heat-balanced, and the heat is spread to the bed as little as possible to achieve the most effective heat release of the main shaft and reduce thermal deformation. Fourth, the machine tool adopts imported precision high-speed silent screw, and adopts double pre-tensioning fixed structure, which makes the rigidity of the machine tool effectively improved, and eliminates the precision variation caused by the cold and hot deformation caused by the machine tool operation. 5. The two-axis guide rail adopts German imported linear guide rail, which has the advantages of good rigidity, high precision, long service life and easy maintenance. Sixth, the screw guide rail adopts liquid automatic lubrication method to effectively protect important parts and extend their service life. Seventh, the use of Taiwan's new generation control system, coupled with Japan's Yaskawa high-speed ultra-precision servo (24-bit encoder), the machine processing accuracy and processing speed has been effectively improved. Eight, this machine is especially suitable for the processing of precision parts such as precision machinery, hardware, automobile, sanitary ware, lighting, optoelectronics and disc parts.

Product details

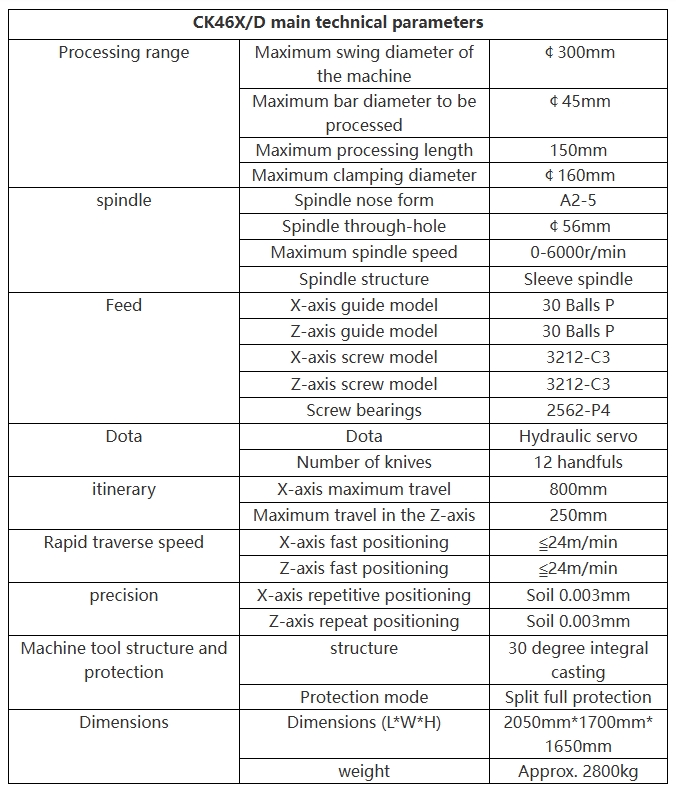

Lathe specifications
CK46X/D turret ramp precision CNC lathe (without tail)
1	Machine structure	Slant bed
2	Tool form	Turret (hydraulic or servo)
3	Number of tools	8-10Put
4	Tool specification	20mm
5	Spindle specifications	A2-5
6	Spindle structure	Sleeve type
7	Spindle through hole diameter	￠56mm
8	Spindle motor power	7.5KWServo
9	Spindle maximum speed	6000rpm
10	Skateboard to spindle center height	70mm
11	Workpiece clamping	Oil pressure
12	Chuck specifications	6-inch hydraulic chuck
13	Maximum clamping diameter	￠160mm
14	Machine tool maximum turning diameter	￠300mm
15	Maximum processing bar diameter	￠45mm
16	Maximum processing length	150mm
17	X-axis stroke	800mm
18	Z-axis travel	250mm
19	X, Z axis fast moving speed	30m/min
20	Repeat positioning accuracy	0.005mm
21	Machining accuracy	±0.005mm
22	Feed motor power	1.3KWServo
23	Hydraulic assembly motor power	1.2KW
24	total power supply	10KW
25	feeding method	Oil bath
26	Lubrication method	automatic
27	Appearance size	205017001850mm(Length * width * height）
28	machine weight	2700KG

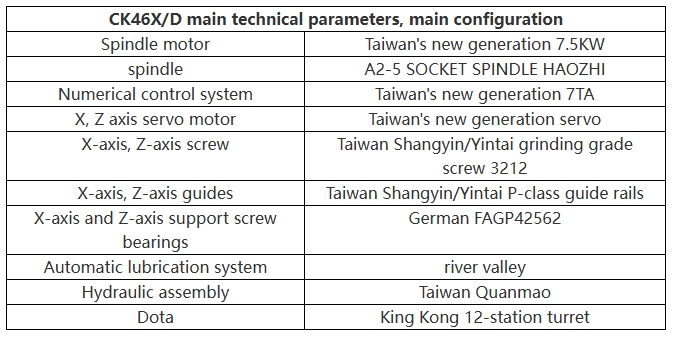

CK46X/D machine is standard
1	Control system	Taiwan's new generation
2	Feed servo	Japan Yaskawa servo or Taiwan new generation
3	Precision ball rods	Taiwan Yintai and Taiwan Bank of Shanghai
4	Precision guide rails	Taiwan Yintai, Taiwan Bank of Shanghai, Rexroth of Germany, INA of Germany
5	Hydraulic turret	Taiwan Liuxin, Taiwan servo turret
6	spindle	Taiwan Pusen, Taiwan Luo Yi ROYAL, Haozhi DKDAKE
7	Spindle drive	Beijing hyper-sync

CK46X/D Features:
1.the bed body adopts 30° integral structure. The main shaft adopts the sleeve main shaft with standard inner cone structure, hydraulic chuck and spring collet, which can be directly installed. Without the transition flange, the chuck can be quickly replaced. .
2.the machine tool uses eight-station hydraulic turret design, good rigidity, easy chip removal, easy to operate, especially suitable for the processing of disc parts.
3.the main shaft adopts maintenance-free sleeve design. The sleeve main shaft is installed on the center line of the main shaft. The upper and lower parts of the main shaft are heat-balanced, and the heat is spread to the bed as little as possible to achieve the most effective heat release of the main shaft and reduce thermal deformation.
4.the machine tool adopts imported precision high-speed silent screw, and adopts double pre-tensioning fixed structure, which makes the rigidity of the machine tool effectively improved, and eliminates the precision variation caused by the cold and hot deformation caused by the machine tool operation.
5.The two-axis guide rail adopts German imported linear guide rail, which has the advantages of good rigidity, high precision, long service life and easy maintenance.
6.the screw guide rail adopts liquid automatic lubrication method to effectively protect important parts and extend their service life.
7. the use of Taiwan's new generation control system, coupled with Japan's Yaskawa high-speed ultra-precision servo (24-bit encoder), the machine processing accuracy and processing speed has been effectively improved.
8.this machine is especially suitable for the processing of precision parts such as precision machinery, hardware, automobile, sanitary ware, lighting, optoelectronics and disc parts.
