CK46X/Z ramp rail cutter precision CNC lathe

CK46XZ features: 1.the machine adopts 30° integral cast early slant bed structure, easy chip removal, low center of gravity, strong bending resistance and good component protection. 2.the use of the row knife structure, effectively avoid the precision error caused by the tool change, and increase the tool change speed, saving processing time. 3. The main shaft adopts the sleeve main shaft with the standard inner cone structure, the hydraulic chuck and the spring collet can be directly installed. Without the transition flange, the chuck can be quickly replaced. 4. The spindle adopts maintenance-free structure and uses precise high-speed angular contact bearings. The maximum speed can reach 6000 rpm, which can effectively perform high-speed machining and improve the surface roughness of the workpiece. 5. The machine tool adopts imported precision high-speed silent screw and adopts double pre-tensioning fixed structure, which makes the rigidity of the machine tool effectively improved and eliminates the precision variation caused by the cold and hot deformation caused by the machine tool operation. 6.the two-axis guide rail adopts linear guide rails imported from Taiwan and Germany, which has the advantages of good rigidity, high precision, long service life and easy maintenance. 7. The screw guide rail adopts liquid automatic lubrication method to effectively protect important parts and prolong their service life. 8.the use of imported control system, and with the Japanese Yaskawa high-speed ultra-precision servo (24-bit encoder), the machine processing accuracy and processing speed has been effectively improved. 9. This machine tool is suitable for the processing of precision parts such as aviation equipment, optoelectronics, automobile, sanitary ware and military.

Product details

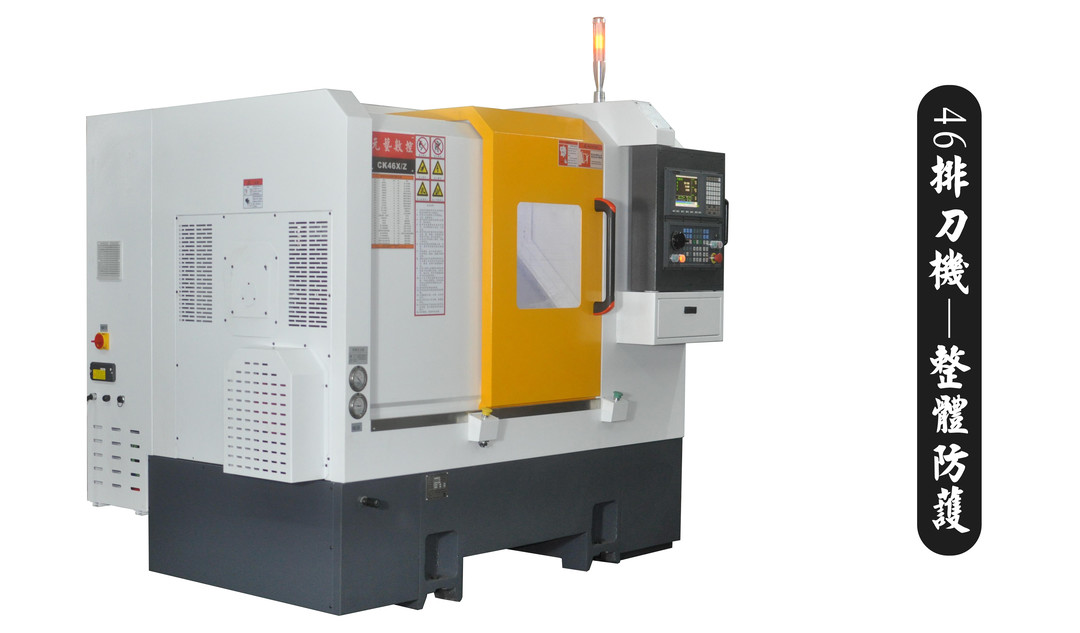

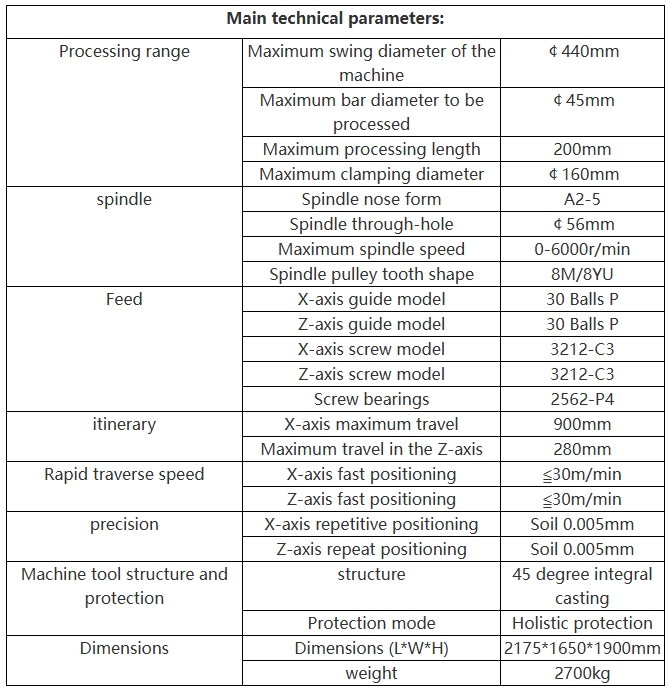

Lathe specifications
CK46X/Z ramp rail cutter precision CNC lathe
1	Machine structure	Integral casting slant bed
2	Tool form	Row of knives
3	Number of tools	8 pieces (showing workpiece diameter)
4	Tool specification	20mm
5	Spindle specifications	A2-5
6	Spindle structure	Sleeve type
7	Spindle through hole diameter	￠56mm
8	Spindle motor power	5.5KWServo
9	Spindle maximum speed	6000rpm
10	Skateboard to spindle center height	50mm
11	Workpiece clamping	Oil pressure
12	Chuck specifications	6-inch hydraulic chuck
13	Maximum clamping diameter	￠160mm
14	Machine tool maximum turning diameter	￠250mm
15	Maximum processing bar diameter	￠45mm
16	Maximum processing length	200mm
17	X-axis stroke	800mm
18	Z-axis travel	300mm
19	X, Z axis fast moving speed	36m/min
20	Repeat positioning accuracy	0.003mm
21	Machining accuracy	±0.005mm
22	Feed motor power	1.3KW
23	Hydraulic assembly motor power	1.2KW
24	total power supply	10KW
25	feeding method	Oil bath
26	Lubrication method	automatic
27	Appearance size	205017001850mm(Length * width * height）
28	machine weight	2700KG

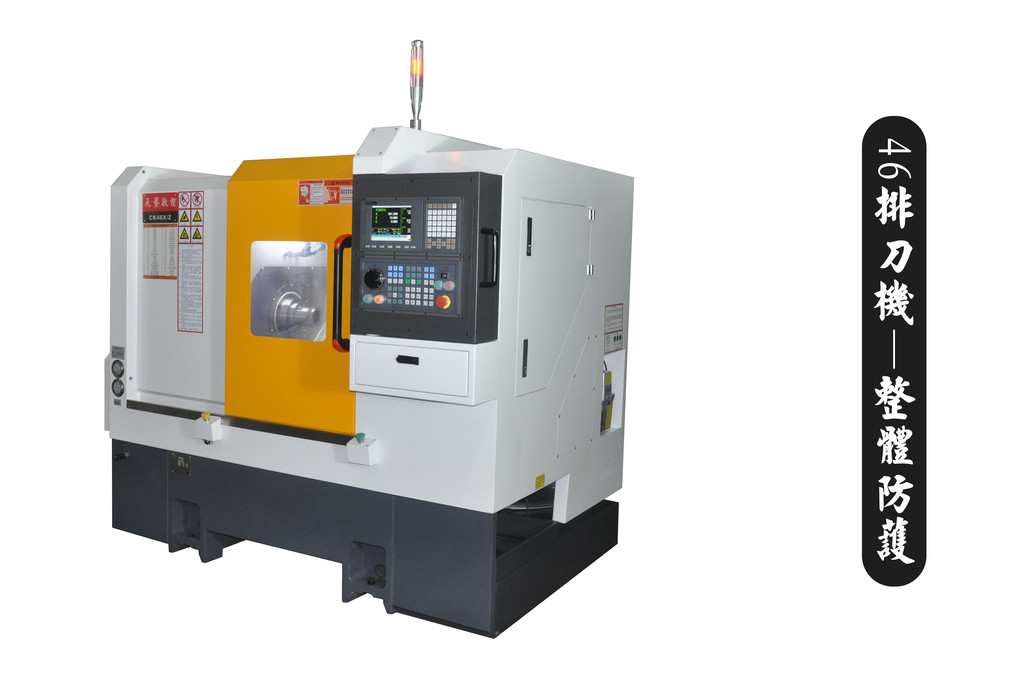

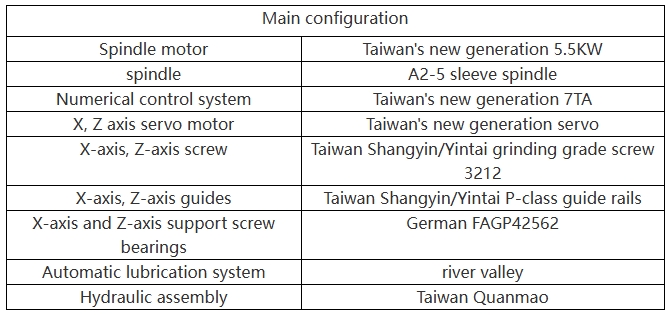

CK46XZ machine comes as standard
1	Control system	Taiwan's new generation
2	Feed servo	Japan's Yaskawa, Taiwan's new generation
3	Precision ball screws	Taiwan Yintai and Taiwan Bank of Shanghai
4	Precision guide rails	Taiwan Yintai and German Rexroth
5	spindle	Taiwan Pusen, Taiwan Luo Yi ROYAL, Haozhi DKDAKE
6	Spindle drive	Beijing super synchronous servo

CK46X/Z features:
1.the machine adopts 30° integral cast early slant bed structure, easy chip removal, low center of gravity, strong bending resistance and good component protection.
2.the use of the row knife structure, effectively avoid the precision error caused by the tool change, and increase the tool change speed, saving processing time.
3. The main shaft adopts the sleeve main shaft with the standard inner cone structure, the hydraulic chuck and the spring collet can be directly installed. Without the transition flange, the chuck can be quickly replaced.
4. The spindle adopts maintenance-free structure and uses precise high-speed angular contact bearings. The maximum speed can reach 6000 rpm, which can effectively perform high-speed machining and improve the surface roughness of the workpiece.
5. The machine tool adopts imported precision high-speed silent screw and adopts double pre-tensioning fixed structure, which makes the rigidity of the machine tool effectively improved and eliminates the precision variation caused by the cold and hot deformation caused by the machine tool operation.
6.the two-axis guide rail adopts linear guide rails imported from Taiwan and Germany, which has the advantages of good rigidity, high precision, long service life and easy maintenance.
7. The screw guide rail adopts liquid automatic lubrication method to effectively protect important parts and prolong their service life.
8.the use of imported control system, and with the Japanese Yaskawa high-speed ultra-precision servo (24-bit encoder), the machine processing accuracy and processing speed has been effectively improved.
9. This machine tool is suitable for the processing of precision parts such as aviation equipment, optoelectronics, automobile, sanitary ware and military.
